Product Description

60 Durometer Neoprene Tubing

WARCO’s 60 Durometer Neoprene Tubing is designed to meet the Mil-R-6855 / MIL–PRF–6855 Class 2 Grade 60 specification with very restrictive microbial growth per Mil-Std-810. MIL-R-6855 Class 2 Type A/B is equivalent to MIL-PRF-6855 Class 2 Type A/B. Material is supplied unmarked but may be marked upon request.

Stock items are available in 1/16″ wall and in eight popular inner diameter sizes from 1/4″ to 3/4″. Other sizes, durometers and materials are available. Made in the USA.

Samples available upon request.

Key Aspects

Temperature Range:-50°F to +220°F
Durometer (Shore A ± 5):60
Tensile(min.):1500 psi
Elongation (min.):300%
Talc:
Talc Present
Specification:
MIL-R-6855 / MIL–PRF–6855 Class 2 Type A/B
Compound Number(s)Part Number(s)
060E07130031265091003126509200312650930031265094
0031265095003126779200312677930031267794

We comply with the Buy American Act requirements.

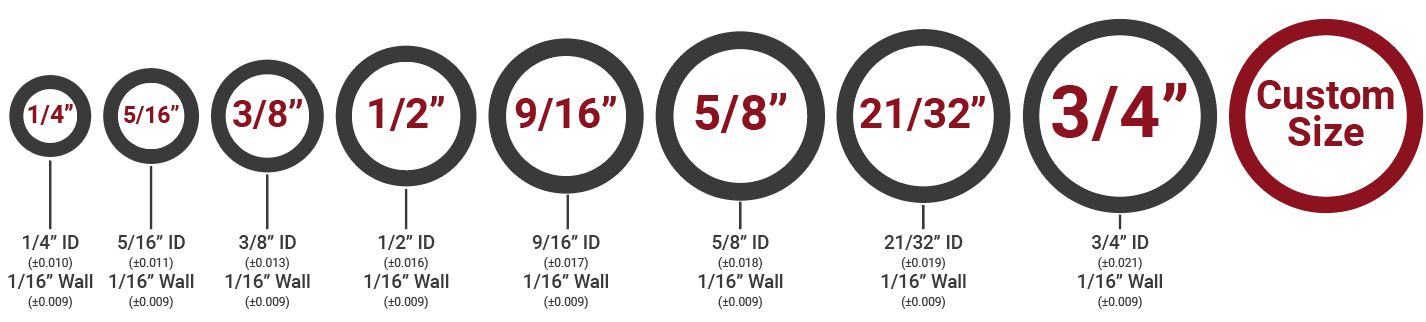

The Following Sizes Are Stock Items:

Advanced Technical Details

Durometer
Hardness
(Shore A ± 5)
Inner Diameter
(inches)
Wall Thickness
(inches)
Tensile
(min.)
Ultimate
Elongation
(min.)
Temperature
Range
Specifications
601/16 – 51/32 – 11500 psi300%-50°F to +220°FMIL-R-6855 / MIL–PRF–6855 Class 2 Type A/B Grade 60
Very Restrictive Microbial Growth per Mil-Std-810

Compound Number: 060E0713(60E713)

Unsure on how to read our compound number? Read the page, “How to Read a Compound Number”.

In addition to the previously mentioned specification, we also offer a comprehensive list of tables and explanations relating to the MIL-PRF-6855 specifications for rubber sheet, rubber strips, rubber extruded tubing, and rubber extruded u channels. Learn more at this link.

Our rubber products are a proprietary blend of various polymers formulated to meet stated physicals and specifications. The named product polymer is not necessarily the primary polymer representing the highest percentage of the polymer blend. Determination of the suitability of the goods for the uses and applications contemplated by Buyer and others shall be the sole responsibility of the Buyer or user. No guaranty is given with respect to length of service on any particular application. Suggestions or recommendations made by Seller in its product literature concerning uses or applications of the goods are believed to be reliable, but Seller makes no warranty or guaranty of results to be obtained since the conditions of the use and application by Buyer and others are beyond Seller’s control. The specification listed here, MIL, represents the United States Military Departments and the Defense Agencies’ standardization documents that have been developed and used for products, materials, and processes that have multiple applications to promote commonality and interoperability and to limit the variety of items in the military supply system. Their website can be found here: https://www.dsp.dla.mil/Specs-Standards/.

View complete Terms & Conditions of Sale for suitability of use and formulations
